Killark EKJUF-524 1-1/2 Inch Flexible Coupling, Bronze, 24 Inch Bend Length, Hazardous Location
Killark EKJUF-524 1-1/2 Inch Flexible Coupling, Bronze, 24 Inch Bend Length, Hazardous Location
- MPN: EKJUF-524
- UPC: 783936105987
- PPN: HBL-EKJUF-524
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

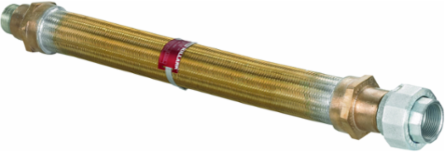

1-1/2" Flexible Coupling with 24" Bend Length, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Provided with one zinc plated steel nipple and one zinc plated steel female union
- Special lengths available – consult factory
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Provided with one zinc plated steel nipple and one zinc plated steel female union.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Bronze
- Hub Size
- 1-1/2"
- Type
- Flexible Coupling With Female Union
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FLEX COUPLING1-1/2"X24"W/UNION
- Harmonization Code
- 8307903000
- Lead Time
- 25 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Gross Weight with Packaging
- 18.2
- Material
- Bronze
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Width3.656 in
ApplicationFor use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
FinishNatural
Special FeaturesBronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Provided with one zinc plated steel nipple and one zinc plated steel female union.
Finish TypeNatural
Class CodeD30
Freight Class Code05114009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesEKJUF Series
Carton - SCC-14 Next Lower Level Sub Pack00783936105987
Certifications
- EU RoHS Indicator
- Contact Manufacturer
