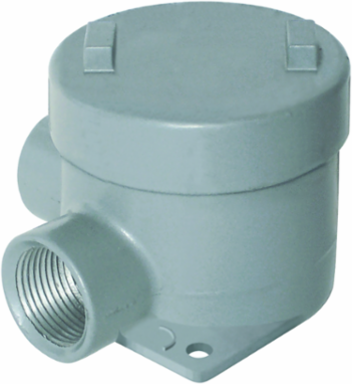

Killark GEBL-5 1-1/2 Inch GEB Outlet Body, L Type, Aluminum, NEMA 4X, Mounting Lugs
Killark GEBL-5 1-1/2 Inch GEB Outlet Body, L Type, Aluminum, NEMA 4X, Mounting Lugs
- MPN: GEBL-5
- UPC: 783936114774
- PPN: HBL-GEBL-5
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$393.83/ EA
Description
1-1/2" GEB Outlet Body, L Type, Aluminum
Features
- Suitable for NEMA 4X applications
- Integral mounting lugs
- Green ground screw standard
- External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling
- Taper threaded hubs provide ground continuity
- External threaded body for additional wiring room
- Includes cover and gasket
- Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 8.380 in
- Height
- 4.13 in
- Application
- Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
- Length
- 10.31 in
- Special Features
- Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre
- Width
- 8.38 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- OUTLET BODY 1-1/2" AL L-TYPE
- Harmonization Code
- 7609000000
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 2.8
- UL File Number
- E10514
- Series
- GE Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936114774
Dimensions10.31 in x 8.38 in x 4.13 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size1-1/2"
ColorGray
Size10.31 in x 8.38 in x 4.13 in
TypeOutlet Body With Cover
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternL
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
