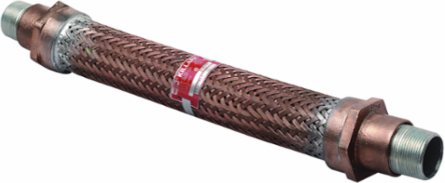

Killark EKJ-515 1-1/2 Inch x 15 Inch Flexible Coupling, Bronze, UL Listed for Hazardous Locations
Killark EKJ-515 1-1/2 Inch x 15 Inch Flexible Coupling, Bronze, UL Listed for Hazardous Locations
- MPN: EKJ-515
- UPC: 783936014081
- PPN: HBL-EKJ-515
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3730.80/ EA
Description
1-1/2" x 15" Flexible Coupling, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Female ends with removable zinc plated steel nipples standard on all couplings
- Union type couplings may be assembled by adding a GUF Series union to the nipple
- Special lengths available-consult factory
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 3.656 in
- Application
- For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
- Finish
- Natural
- Special Features
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 05114009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- EKJ Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936014081
Width3.656 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorBronze
Hub Size1-1/2"
TypeFlexible Coupling
ARRA CompliantContact Manufacturer
Description - InvoiceFLEX COUPLING 1 1/2"x15" BRONZE
Harmonization Code8307903000
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD30D239
Gross Weight with Packaging9.2
MaterialBronze
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
