Killark EKJ-530 1-1/2 Inch x 30 Inch Flexible Coupling, Bronze, Class I Hazardous Rating
Killark EKJ-530 1-1/2 Inch x 30 Inch Flexible Coupling, Bronze, Class I Hazardous Rating
- MPN: EKJ-530
- UPC: 783936107981
- PPN: HBL-EKJ-530
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

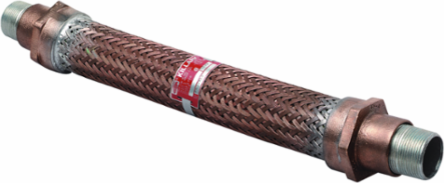

1-1/2" x 30" Flexible Coupling, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Female ends with removable zinc plated steel nipples standard on all couplings
- Union type couplings may be assembled by adding a GUF Series union to the nipple
- Special lengths available-consult factory
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Bronze
- Hub Size
- 1-1/2"
- Type
- Flexible Coupling
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FLEX COUPLING 1 1/2"x30" BRONZE
- Harmonization Code
- 8307903000
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Gross Weight with Packaging
- 14.2
- Material
- Bronze
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Width3.656 in
ApplicationFor use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
FinishNatural
Special FeaturesBronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Finish TypeNatural
Class CodeD30
Freight Class Code05114009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesEKJ Series
Carton - SCC-14 Next Lower Level Sub Pack00783936107981
Certifications
- EU RoHS Indicator
- Contact Manufacturer
