Killark EKJ-436 1-1/4 Inch Flexible Coupling, 36 Inch Bend Length, Bronze Construction
- MPN: EKJ-436
- UPC: 783936107912
- PPN: HBL-EKJ-436
- UNSPSC: 39131708
CAD
$4767.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

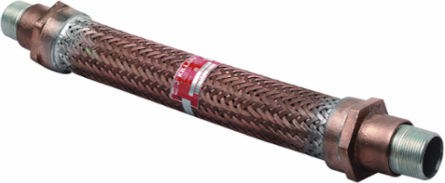

1-1/4" Flexible Coupling with 36" Bend Length, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Female ends with removable zinc plated steel nipples standard on all couplings
- Union type couplings may be assembled by adding a GUF Series union to the nipple
- Special lengths available-consult factory
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Natural
- ARRA Compliant
- Contact Manufacturer
- Color
- Bronze
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
- Type
- Flexible Coupling
- Description - Invoice
- FLEX COUPLING 1 1/4"x36" BRONZE
- Harmonization Code
- 8307909100
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Gross Weight with Packaging
- 13.1
- Material
- Bronze
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936107912
- NAICS Code
- 3359323110
Special FeaturesBronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Country of OriginUnited States
Width2.938 in
Hub Size1-1/4"
Finish TypeNatural
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesEKJ Series
BOX SIZE(in)
Master Pack DescriptionEach
