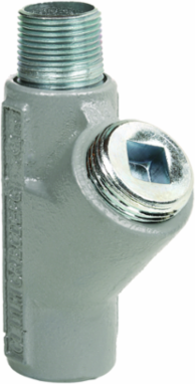

Killark EY-50TM 1/2 Inch Vertical Seal Fitting Iron with Nipple, Class I, Divisions 1 & 2
Killark EY-50TM 1/2 Inch Vertical Seal Fitting Iron with Nipple, Class I, Divisions 1 & 2
- MPN: EY-50TM
- UPC: 783936090924
- PPN: HBL-EY-50TM
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$83.48/ EA
Description
1/2" EY Vertical Seal Fitting Iron, w/nipple Male/Female
Features
- Large opening for easy packing of fiber dam and pouring of compound.
- Integral bushings in conduit hubs to protect conductor insulation from damage.
- NPT tapped hubs to ensure ground continuity.
- Design provides minimum turning radius.
- 25% conductor fill.
- Supplied with removeable close nipples.
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 10.000 in
- Application
- Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
- Finish
- Powder Epoxy Paint
- Hub Size
- 1/2"
- Special Features
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
- Width
- 10 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL FTG FE 1/2" W/NIPPLE
- Harmonization Code
- 7307110030
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.040 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Dimensions5 in x 10 in x 0.1 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorGray
Height0.1 in
Length5 in
TypeSealing Fitting With Nipple
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging1.06
SeriesEY Series
BOX SIZE4.750x15.250x9.375 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936090924
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
