Killark

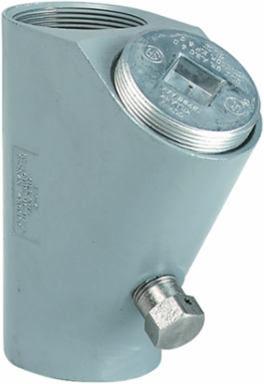

Killark EYD40-1M 1/2 Inch 40% Fill Vertical/Horizontal Seal Fitting Iron, 3.125 Inch Width, NPT Threaded

1/2 Inch 40% Fill Vertical/Horizontal Seal Fitting Iron, 3.125 Inch Width, NPT Threaded
  • MPN: EYD40-1M
  • UPC: 783936116297
  • PPN: HBL-EYD40-1M
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$410.69/ EA

Description

1/2" EYD 40%-Fill Ver/Hor Seal Fitting Iron

Features

  • 40% wire fill capacity.
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams.
  • Integral bushing in conduit hubs to protect conductor insulation from damage.
  • NPT threaded hubs to ensure ground continuity.
  • Minimum turning radius.
  • A 40% wire fill capacity. Large openings with threaded closures to provide easy access to conduit hubs for making dams. Integral bushing in conduit hubs to protect conductor insulation from damage. NPT threaded hubs to ensure ground continuity. Minimum tu

Specifications

Specifications

Country of Origin
Mexico
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Color
Gray
Hub Size
1/2"
Type
40% Fill Sealing Fitting
General Literature Asset 2 Display Text
ENY EYD Cross Reference Guide
ARRA Compliant
Contact Manufacturer
Description - Invoice
SEAL FTG FE 1.5 IN DRAIN 40-FILL
Harmonization Code
7307199060
Lead Time
42 wk
Order Multiple
1 EA
Sub Class Code
D30D237
Material
Iron
Base Unit of Measure
EA
Carton - Gross Weight per Pack
9.500 lb.
Carton - Pack Description
Carton
Carton - Total Units
5 EA
Width3.125 in
ApplicationTo seal rigid conduit or IMC raceways with up to 40% wire fill.
FinishPowder Epoxy Paint
Special FeaturesA 40% wire fill capacity. Large openings with threaded closures to provide easy access to conduit hubs for making dams. Integral bushing in conduit hubs to protect conductor insulation from damage. NPT threaded hubs to ensure ground continuity. Minimum tu
General Literature Asset 1 Display TextHazardous-rated seal-off fittings in expanded trade sizes and with improved design
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging1.9
SeriesEYD Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936116297
Master Pack DescriptionEach

Certifications
