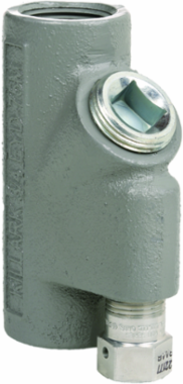

Killark EYD-50M 1/2 Inch Drain Seal Fitting Iron Female/Female, Class I Hazardous Rating
Killark EYD-50M 1/2 Inch Drain Seal Fitting Iron Female/Female, Class I Hazardous Rating
- MPN: EYD-50M
- UPC: 783936090368
- PPN: HBL-EYD-50M
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$247.95/ EA
Description
1/2" EYD Drain Seal Fitting Iron, Female/Female
Features
- Threaded for Rigid Conduit or IMC
- Tapered threads (NPT)
- Simple to install.
- Internal drainage path provides a visual means to ensure that the compound chamber is properly filled.
- Large cover openings for easy packing of fiber dam.
- Temporary plastic sleeve protects thread for drain/breather from contamination when pouring compound.
- Unique design enables installation of drain/breather right after compound is poured.
- Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC.
- Includes Drain Breather Fitting KDB-375.
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 10.000 in
- Application
- Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
- Finish
- Powder Epoxy Paint
- Hub Size
- 1/2"
- Special Features
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
- Width
- 10 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL FTG FE 1/2" FEMAL/FEMAL DRAIN
- Harmonization Code
- 7307110030
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.040 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
Dimensions5 in x 10 in x 0.1 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorGray
Height0.1 in
Length5 in
TypeSealing Fitting
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.9
SeriesEYD Series
BOX SIZE4.750x15.250x9.375 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936090368
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
