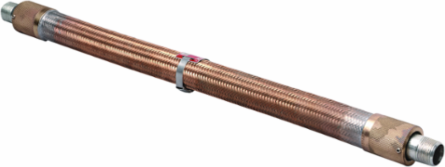

Killark EKJ-112 Bronze Flexible Coupling 1/2 Inch x 12 Inch for Hazardous Locations
- MPN: EKJ-112
- UPC: 783936107547
- PPN: HBL-EKJ-112
- UNSPSC: 39131708
CAD
$924.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2" Flexible Coupling with 12" Bend Length, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Female ends with removable zinc plated steel nipples standard on all couplings
- Union type couplings may be assembled by adding a GUF Series union to the nipple
- Special lengths available-consult factory
- Furnished with a setscrew (for use as a fixture hanging coupling)
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Bronze
- Height
- 2.5 in
- Length
- 19 in
- Type
- Flexible Coupling
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 05114009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- EKJ Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions19 in x 2.625 in x 2.5 in
ApplicationFor use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
FinishNatural
Hub Size1/2"
Special FeaturesBronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Width2.625 in
ARRA CompliantContact Manufacturer
Description - InvoiceFLEX COUPLING 1/2"x12" BRONZE
Harmonization Code8307903000
Lead Time10 wk
Order Multiple1 EA
Sub Class CodeD30D239
Gross Weight with Packaging2.29
MaterialBronze
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936107547
NAICS Code3359323108
