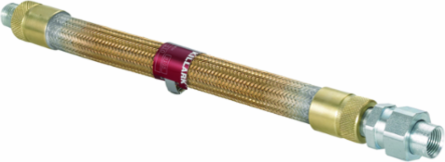

Killark ECFUF-118 1/2 Inch Flexible Coupling with 18 Inch Bend Length, Bronze Construction
Killark ECFUF-118 1/2 Inch Flexible Coupling with 18 Inch Bend Length, Bronze Construction
- MPN: ECFUF-118
- UPC: 783936105659
- PPN: HBL-ECFUF-118
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$996.23/ EA
Description
1/2" Flexible Coupling with 18" Bend Length,Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Provided with one zinc plated steel nipple and one zinc plated steel female union
- Special lengths available – consult factory
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Provided with one zinc plated steel nipple and one zinc plated steel female union.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 2.625 in
- Application
- For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
- Finish
- Natural
- Hub Size
- 1/2"
- Special Features
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Provided with one zinc plated steel nipple and one zinc plated steel female union.
- Width
- 2.625 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FLEX COUPLING 1/2"X18" W/UNION
- Harmonization Code
- 8307903000
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Gross Weight with Packaging
- 2.91
- Material
- Bronze
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions25 in x 2.625 in x 2.625 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorBronze
Height2.625 in
Length25 in
TypeFlexible Coupling With Female Union
Finish TypeNatural
Class CodeD30
Freight Class Code05114009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesECFUF Series
Carton - SCC-14 Next Lower Level Sub Pack00783936105659
Certifications
- EU RoHS Indicator
- Contact Manufacturer
