Killark AF-50AL Aluminum Expansion Fitting 1/2 Inch Hub, 4 Inch Movement, Copper-Free Material
Killark AF-50AL Aluminum Expansion Fitting 1/2 Inch Hub, 4 Inch Movement, Copper-Free Material
- MPN: AF-50AL
- UPC: 783936156040
- PPN: HBL-AF-50AL
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$339.28/ EA
Description

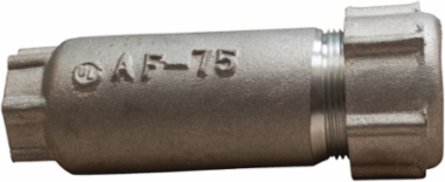

1/2" Hub, Aluminum Casted Expansion Fitting With 4" Linear Movement
Features
- Copper free aluminum casted body and end coupling
- Includes type "A" phenolic insulating bushing
- PTFE synthetic fiber reinforced gasket with steel washer to help maintain a strong seal
- Tinned braided copper ring
- Rain, water and concretetight
- AF Series Expansion fittings are for use with IMC or rigid conduit installations. The AF Series prevents damage of the electrical installations typically used in buildings and bridges by compensating linear movement due to temperature fluctuation or structural movement. This series provides maximum 4” conduit movement (2” in either direction).
Specifications
Specifications
- Country of Origin
- US
- Finish Type
- Natural
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2" AL EXPANSION FITTING 4" MVMT
- Harmonization Code
- 7609000000
- MSDS Flag
- No
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
Hub Size1/2"
TypeExpansion
Class CodeD30
Freight Class Code06168002
Image Actual Or RepresentativeR
Sub Class CodeD30D240
SeriesAF Series
Carton - SCC-14 Next Lower Level Sub Pack00783936156040
Certifications
- EU RoHS Indicator
- Contact Manufacturer
