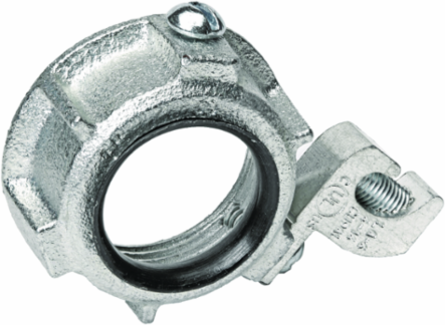

Killark BUIG1 1/2 Inch Iron Insulated Ground Bushing, Lay-in Lug, 150°C Rated, Zinc Plated
- MPN: BUIG1
- UPC: 783936110691
- PPN: HBL-BUIG1
- UNSPSC: 39121331
CAD
$33.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1/2" Iron Insulated Ground Bushing
Features
- Lay-in lug style provides an easy means of inserting ground wire
- Dual rated aluminum grounding lugs may be used with copper or aluminum grounding conductors
- Insuliner temperature rated at 150°C
- Malleable construction insures mechanical protection for the raceway
- Zinc electro plated for corrosion protection
- Lay-in lug style provides an easy means of inserting a ground wire. Dual-rated aluminum grounding lugs may be used with copper or aluminum grounding conductors. Insuliner temperature rated at 150ºC. Malleable iron construction ensures mechanical protection for the raceway. Zinc electro-plated for corrosion protection.
Specifications
Key Specifications
- Country of Origin
- India
- Height
- 0.75 in
- Length
- 1.5 in
- Color
- Gray
- Special Features
- Lay-in lug style provides an easy means of inserting a ground wire. Dual-rated aluminum grounding lugs may be used with copper or aluminum grounding conductors. Insuliner temperature rated at 150ºC. Malleable iron construction ensures mechanical protection for the raceway. Zinc electro-plated for corrosion protection.
- Width
- 0.8 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2 GRND BSHG INSUL 150 C 4 TO 14 AL LUG
- Harmonization Code
- 8547900030
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D236
- Material
- Zinc
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- NAICS Code
- 3359323109
Dimensions1.5 in x 0.8 in x 0.75 in
Hub Size1/2"
ApplicationFor use on threaded rigid/IMC conduit to provide a means of grounding conduit through an insulated bushing.
Size1.5 in x 0.8 in x 0.75 in
TypeInsulated Grounding Bushing
Finish TypeNatural
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.07
SeriesBUIG Series
BOX SIZE6.000x8.000x6.000 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack00783936110691
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
