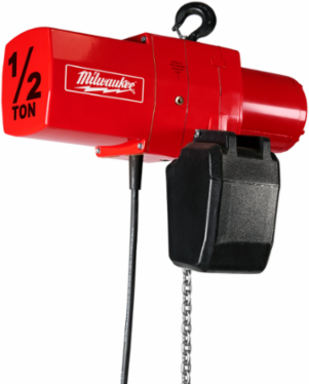

1/2 Ton Electric Chain Hoist, 10 ft Lift Height, 16 ft/min Speed, 230V
Milwaukee Tool

Milwaukee Tool 9560 1/2 Ton Electric Chain Hoist, 10 ft Lift Height, 16 ft/min Speed, 230V

  • MPN: 9560
  • UPC: 045242069002
  • PPN: MIL-9560
  • UNSPSC: 24101602

CAD

$3644.71

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

All Milwaukee professional electric chain hoists offer an array of load lift and height options. With a 1/2 Ton capacity and 10 ft. lifting height, you can order a Milwaukee Electric chain hoist to meet your roughest needs. All offer a multi-disc magnetic brake for positive load holding and spotting. Adjustable upper and lower limit switches, overload limiting clutch and latch-type ridged top hook. You can get single or three-phase voltage motors to meet your operation power requirements. The 24 Volt pushbutton station fits easily in your hand to allow thumb, trigger or two-handed operation.

Features

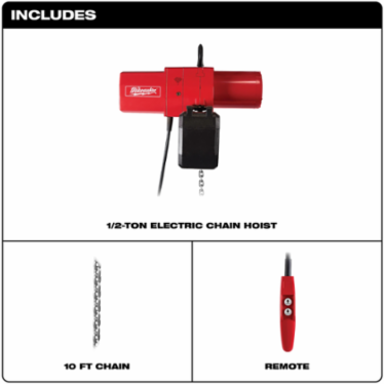

  • 1/2-ton capacity, 10' chain
  • Adjustable upper and lower limit switches for maximum flexibility in regulating load travel
  • Built-in, multiple-disc, magnetic brake provides positive load holding and spotting
  • Single-phase, 115/230 voltage (AC), 9.8 amps at low voltage

Documentation & Downloads

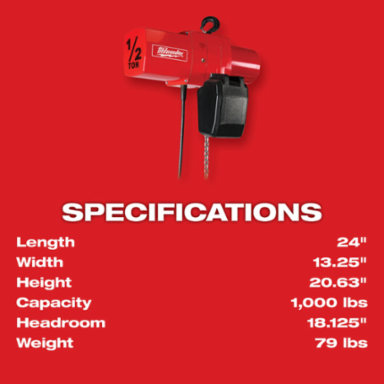

Specifications

Additional

Load Capacity
0.5 ton
Maximum Lifting Speed
16 ft/min
Amperage
9.8 amps
Motor Horsepower
1 hp
Material
Steel
Country of Origin
United States
Lift Height10 ft
Voltage230 V
PhaseSingle-phase
Weight76 lb
Color / FinishRed, Black, White
