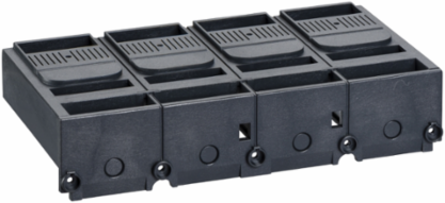

Schneider Electric LV432592 Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles
- MPN: LV432592
- PPN: SCH-LV432592
CAD
$278.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This short terminal shield protects against direct contact with power circuit. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Poles Description
- 4P
- Carbon Footprint Of The Distribution Phase [A4]
- 0.02877294509038652, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.04031794124181763, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Exclusion Rationale
- Product/component not in scope – not electric/electronic device
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1902
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- terminal shields
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- 1
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2410034EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Accessory / Separate Part Type
- insulation accessories
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
- Customs Code
- 8547200000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Range Of ProductComPact NSX400...630, ComPact NSX400...630 DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3086034576441196
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.6562823508286167
Local Data StatusPublishable
Return IndicatorN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Pitch45 mm
Number Of Poles4P
Product Or Component Typeshort terminal shield
RangeComPacT
Software Versionv6.2.3
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Database Version2024-07
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.& 10& 10Protect user against direct contact with power circuits (4 poles) by providing IP40 degree of protection and IK07 mechanical impact protection during a time period of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %2
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)136.000 g
Take-backNo
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]0.3474
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Product contains halogen above thresholds
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2410034EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Reach RegulationFree of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint1.0339766948049405
Eu Rohs DirectiveCompliant
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2410034EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPact NSX400...630, ComPact NSX400...630 DC
Product Or Component Typeshort terminal shield
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
