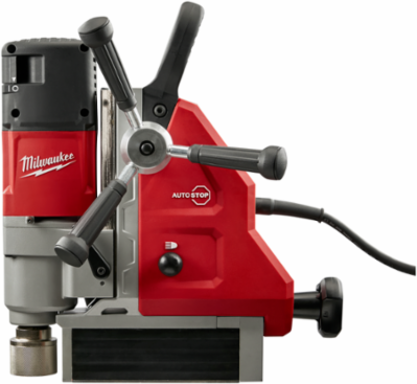

Milwaukee Tool 4274-21 1-5/8 Inch Magnetic Drill Kit, 13 Amp Motor, 2 Speed Gear Box, 30.5 lbs

  • MPN: 4274-21
  • UPC: 045242346486
  • PPN: MIL-4274-21
  • UNSPSC: 27112703

CAD

$2978.47

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The Milwaukee 1-5/8 in. magnetic drill will deliver the fastest drilling and strongest hold on 1/4 in. steel in its class. It’s 13 amp motor delivers the fastest drilling w/ annular cutters or twist drill bits. Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters at 475 RPM and twist drill bits at 730 RPM. The permanent magnet base operates without electricity for continuous magnetic hold even during power interruption. Activating partial magnet mode with a 1/4 turn of the magnet nob allows for faster, easier hole alignment. This magnet technology makes the Milwaukee 1-5/8 in. magnetic drill better for vertical and overhead drilling applications than traditional electromagnetic models.

Features

  • 2 Speed Gear Box: 475/730 RPM
  • 3/4" Weldon Quick Change Arbor
  • Auto-Stop Lift-Off Detection
  • Magnetic Base Operates Without Electricity
  • Optimized Cutting & Drilling Speeds
  • Powerful 13 Amp Motor
  • Strongest Magnetic Hold on 1/4" Steel
  • Tool Free Adjustment: Cutter to Twist Bit
  • Tool Free Feed-Handle
  • Tool Free Motor Head Adjustment

Documentation & Downloads

Specifications

Additional

Amperage
13 Amp
Voltage
120 Volts
Chuck Capacity
3/4 in Weldon
Spindle Travel
5.75 in
Height
15.5 in
Table Material
Steel
Drill Press Type
Portable
ETL Listed
Yes
Country of Origin
China
Speed Range470-730 RPM
Drill Diameter1-5/8 in
Net Weight30.5 lbs
Length13 in
Width7.5 in
Chuck DesignKeyless
CSA CertifiedYes
UL ListedYes
ColorRed/Black
