Documentation & Downloads
Killark 2FSC-3 Aluminum Two Gang Shallow Device Box, 1 Inch, 11 x 7 x 3.75 Inch, 2 Outlets
- MPN: 2FSC-3
- UPC: 783936190228
- PPN: HBL-2FSC-3
- UNSPSC: 39121308
CAD
$117.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

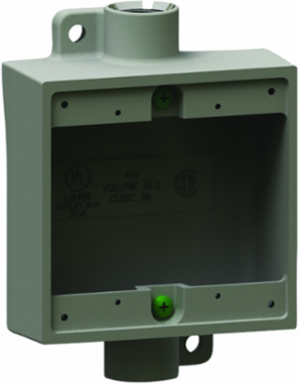

1" Aluminum, 2FSC Type Two Gang Shallow Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3.75 in
- Length
- 11 in
- Color
- Gray
- Size
- 11 in x 7 in x 3.75 in
- Type
- Device Box
- Finish Type
- Powder Epoxy Paint
- Number Of Outlets
- 2
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 1.03
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.060 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
- NAICS Code
- 3359326103
Dimensions11 in x 7 in x 3.75 in
Hub Size1"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet2
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Width7 in
Nema Rating7 (C, D)
ARRA CompliantContact Manufacturer
Description - InvoiceDEVICE BOX 2GANG SHLW AL, 1"
Harmonization Code7616995190
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Hub PatternFeed-Thru
SeriesF Series
BOX SIZE4.000x11.750x7.250 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936190228
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
