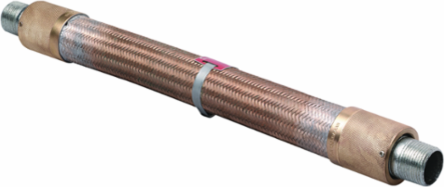

Killark EKJ-336 1 Inch Flexible Coupling with 36 Inch Bend Length, Bronze Construction
- MPN: EKJ-336
- UPC: 783936014050
- PPN: HBL-EKJ-336
- UNSPSC: 39131708
CAD
$1965.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1" Flexible Coupling with 36" Bend Length, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Female ends with removable zinc plated steel nipples standard on all couplings
- Union type couplings may be assembled by adding a GUF Series union to the nipple
- Special lengths available-consult factory
- Furnished with a setscrew (for use as a fixture hanging coupling)
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Natural
- ARRA Compliant
- Contact Manufacturer
- Color
- Bronze
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
- Type
- Flexible Coupling
- Description - Invoice
- FLEX COUPLING 1"x36" BRONZE
- Harmonization Code
- 8307903000
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Gross Weight with Packaging
- 17.7
- Material
- Bronze
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936014050
- NAICS Code
- 3359323108
Special FeaturesBronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Country of OriginUnited States
Width2.190 in
Hub Size1"
Finish TypeNatural
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesEKJ Series
BOX SIZE(in)
Master Pack DescriptionEach
