Burndy

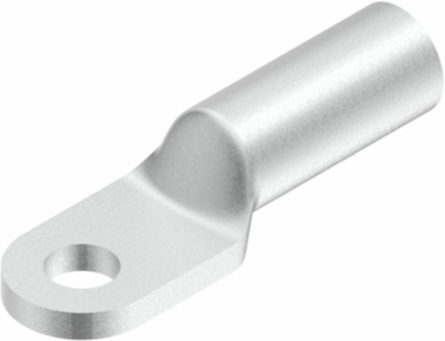

Burndy YAGB2CLTC12FXOEM HYLUGTM Cu Battery Terminal 1 Hole, 2 AWG, 1/2 Inch Stud, 2.09 Inch Length

  • MPN: YAGB2CLTC12FXOEM
  • UPC: 781810547465
  • PPN: BUR-30008169

CAD

$17.34

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

1 Hole HYLUG™ Cu Battery Terminal, #2 AWG, 1/2" stud, 2.09" L, 0.81" W, Green

Documentation & Downloads

Specifications

Dimensions

Dimension - L Length Overall mm53 mm
Dimension - Pad Width inch0.81 in
Dimension - Stud Size inch1/2 in
Dimension - Length Overall inch2.09 in
Dimension - Strip Length inch15/16 in

Certifications and Compliance

Certification - CSA ApprovedNo
Certification - UL RecognizedNo
Standards - RoHS Compliance StatusCM
UL ListedNo
Certification - ETLNo
Certification - cULusNo
Standards - RoHS CompliantYes

Conductor Related

Conductor - Copper Str Size2 AWG
Conductor TypeCU C Str-Size

General

ApplicationPower Connector
Physical Attribute - Number of Holes1
Temperature Rating194
TypeOEM Terminals
UPC 12 Digit7818105474655
Connector TypeTerminal
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810547465

Electrical Ratings

Rating - KVA35 kV
Voltage - Maximum35000
Rating - Minimum Voltage600
HYLUGTM Cu Battery Terminal 1 Hole, 2 AWG, 1/2 Inch Stud, 2.09 Inch Length
