Adaptaflex SP32/M32/C90 Conduit Fitting with Metric Threads

MPN: SP32/M32/C90
UPC: 786210249209
PPN: T-B-SP32/M32/C90

$112.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

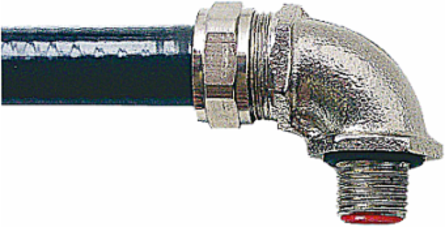

Hot-Dip Galvanised Brass 90 Degree Conduit Fitting and Elbow with Male External Thread, Nominal Conduit Size 32 Millimeters, Metric Thread Size M32

Specifications

European Specifications (ETIM)

ETIM	EC001180 Screw connection for protective metallic hose
Degree of protection (IP) conduit dependant	IP65-IP65
Revolving thread	N
Connection type screw connection to housing	Thread
Thread connection size	M32 x 1.5
Material housing	Brass
Thread length	17.5mm
Approved in combination with protective conduit CSA	N
Approved in combination with protective conduit FI	N

Nominal diameter	32mm
Model	90°-elbow
Construction type	External thread
Thread type	Metric
One-piece	Y
Surface protection	Other
Approved in combination with protective conduit DIN EN 61386-23	N
Approved in combination with protective conduit UL	N
Operating temperature	-50-+300°C

North American Specifications (UNSPSC)

UNSPSC	39121311 Electrical fittings
Brand Name	Adaptaflex
Application	For Insertion into Threaded Entries or Knockout to Connect Conduit
Material	Brass
Color	Metallic
Cable Entry	M32 Thread
