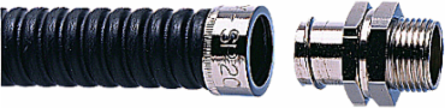

Adaptaflex SP32/M32/B Nickel Plated Brass Conduit Fitting M32 Thread 1 Inch
- MPN: SP32/M32/B
- UPC: 786210249193
- PPN: T-B-SP32/M32/B
CAD
$77.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Nickel Plated Brass Straight Fitting with Swivel External Thread, Nominal Conduit Size 32 Millimeters, Metric Thread Size M32
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP54-IP54
- Revolving thread
- Y
- Connection type screw connection to housing
- Thread
- Thread connection size
- M32 x 1.5
- Material housing
- Brass
- Thread length
- 14mm
- Approved in combination with protective conduit DIN EN 61386-23
- N
- Approved in combination with protective conduit UL
- N
- Operating temperature
- -50-+350°C
Nominal diameter32mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length47mm
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit FIN
Packaging
- Inner Quantity
- 2
- Outer Quantity
- 100
- Weight Uom
- 0.13 lbs. Each
Inner Dimensions (inches)1.8x1.6x2.2
Outer Dimensions (inches)1.8x1.6x2.2
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M32 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size1 Inch
FinishNickel Plated
ConnectionStraight
