Superstrut CPC050 Pipe Straps, Pipe Clamps & Hangers (Series 700)
- MPN: CPC050
- UPC: 616013106983
- PPN: T-B-CPC050
CAD
$2.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

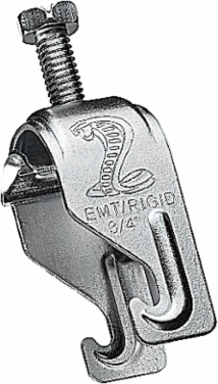

Clamp, One-Piece Cable and Pipe, EMT and Rigid Conduit Trade Size 1/2 Inch, Cable Outer Diameter Range .650-.890 Inches, Steel
Features
- Heavy-duty 5/16 Inch hex bolt with multi-driver head, Robertson square, Phillips cross-recess and slot, provides a full range of installation options.
- Reconfigure wiring without complete disassembly. Remove cables easily without disturbing neighboring clamps.
- Parallel hook design keeps conduits and cable square with strut.
- Works with all depths of strut - 13/16 Inch to 3 1/4 Inch
Specifications
Additional
| Maximum Clamp Diameter | 0.890 in |
|---|---|
| Size | 1/2 in |
| Thickness | 0.112 in |
| Finish | GoldGalv/Standard |
| Brand | Superstrut |
| Standard | UL E160899 |
| Minimum Clamp Diameter | 0.650 in |
|---|---|
| Width | 1 in |
| Material | Steel |
| Number Of Holes | 1 |
| Type | Pipe Straps, Pipe Clamps & Hangers (Series 700) |
| Outer Dimensions | 10 x 5.75 x 7.5 in |
