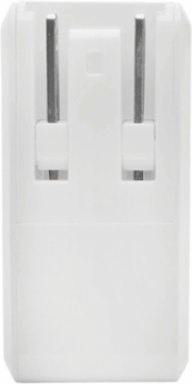

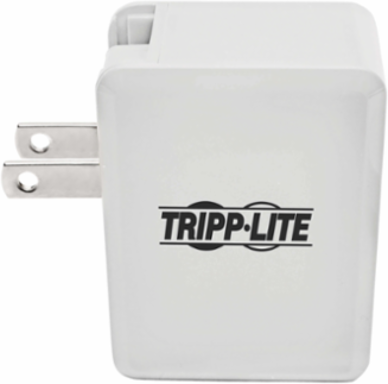

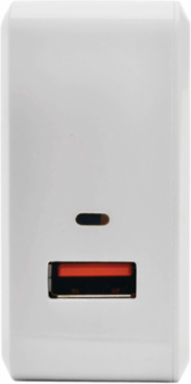

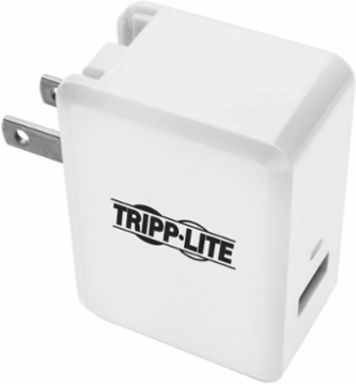

Tripp Lite U280-W01-QC3-1 1-Port USB Wall Charger Quick Charge 3.0, 18W, 1-15P Plug
Tripp Lite U280-W01-QC3-1 1-Port USB Wall Charger Quick Charge 3.0, 18W, 1-15P Plug
- MPN: U280-W01-QC3-1
- UPC: 037332239495
- PPN: TRP-U280-W01-QC3-1
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$44.02/ EA
Description
1-Port USB Wall Charger Quick Charge 3.0, 18W, 1-15P Plug
Features

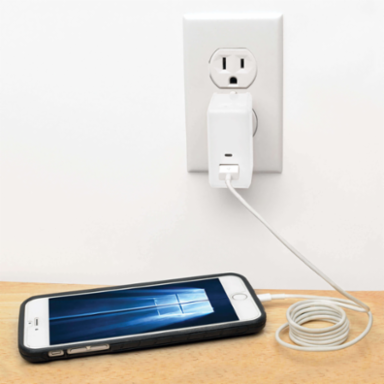

- Ideal for charging smartphones, tablets, e-readers and MP3 players while traveling
- Charges Quick Charge 3.0 devices up to 4 times faster than normal USB charging
- Auto-sensing USB port adjusts charging power to your non-QC 3.0 device up to 5V/2.4A
- Stops charging when connected device is at full capacity to protect battery from damage
- Connects to any NEMA 1-15R, 5-15R or 5-15R/20R AC outlet for immediate charging
- 2-year limited warranty
- 1-Port USB Wall Charger Gets Your Mobile Device up to Capacity Wherever You Are
- Charges Quick Charge 3.0-Compatible Devices up to 4 Times Faster than Standard Chargers
- Built-In Auto-Sensing Adjusts to Proper Power Level to Get Your Device to 100%
- Folding Plug Design Perfectly Sized for Travel
Specifications
Features & Specifications
- Driver Required
- No
- Technology
- USB; USB 2.0 (High Speed)
Quick Charge Compliant3.0
Certifications
- Certifications
- FCC, UL, RoHS, REACH
ApprovalsUL Listed
Connections
- Ports
- 1
- Side B - Connector 1
- USB A (FEMALE)
Side A - Connector 1NEMA 1-15P (NON-POLARIZED)
Physical
- Color
- White
- Shipping Dimensions (hwd / in.)
- 1.60 x 3.60 x 3.90
- Unit Weight (lbs.)
- 0.15
Material of ConstructionPlastic (PC945)
Unit Dimensions (hwd / in.)2.2 x 1.7 x 1.1
User Interface, Alerts & Controls
- LED Indicators
- Blue (6V-6.5V/3A), Green (5V-9V/2A), Red (9V-12V/1.5A)
Input
- Input Connection Type
- NEMA 1-15P
- Input Frequency
- 50/60Hz
Voltage Compatibility (VAC)100; 100-127; 100-140; 110; 110-240; 120; 125; 127; 200; 200-240
Input Current0.45A Max
Output
- Charging Ports / Amps
- 3A / 2A / 1.5A
- Charging Method
- USB
Output Capacity3.6V-6.5V / 6.5V-9V / 9V-12V
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 18
Storage Temperature Range-4 to 176 F (-20 to 80 C)
BTUs0.229
Overview
- UPC Code
- 037332239495
Over Current ProtectionY
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
