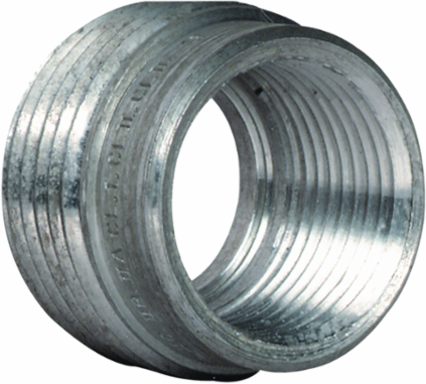

Killark RE32S Reducing Bushing 1" to 3/4", Steel, Zinc Plated, NPT Threads
Killark RE32S Reducing Bushing 1" to 3/4", Steel, Zinc Plated, NPT Threads
- MPN: RE32S
- UPC: 783936010830
- PPN: HBL-RE32S
- UNSPSC: 39131708
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$6.71/ EA
Description
1" to 3/4" Reducing Bushing, Steel (Zinc Plated)
Features
- Tapered threads (NPT)
- Smooth internal bushing protects conductors
- Threaded for Rigid Conduit or IMC
- Killark’s reducing bushings and adapters assist in reducing the trade size of tapped holes and its smooth internal bushing protects conductors. The wide variety of reducing ranges allow for almost any combination of size changes. It is available in copper-free aluminum and zinc plated steel.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G
- Color
- Glossy gray
- Height
- 0.83 in
- Length
- 1.32 in
- Type
- Reducing Bushing
- Weight
- 0.08 lb.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1" TO 3/4" REDUCER STEEL
- Harmonization Code
- 7307995045
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.08
- Material
- Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.700 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
Dimensions1.32 in x 1.32 in x 0.83 in
ApplicationTo reduce the trade size of a taped hole or hub.
FinishZinc Plated
Hub Size1" to 3/4"
Special FeaturesKillark’s reducing bushings and adapters assist in reducing the trade size of tapped holes and its smooth internal bushing protects conductors. The wide variety of reducing ranges allow for almost any combination of size changes. It is available in copper-free aluminum and zinc plated steel.
Width1.32 in
Finish TypeZinc Plated
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesRE Series
BOX SIZE0.830x1.320x1.320 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack00783936010830
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
