Killark EKJ-315SS-EX 1" x 15" Flexible Coupling, Stainless Steel, Quad Listed
- MPN: EKJ-315SS-EX
- UPC: 783936073521
- PPN: HBL-EKJ-315SS-EX
- UNSPSC: 39131708
CAD
$4569.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

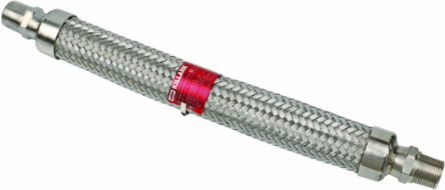

1" x 15" Flexible Coupling, Stainless Steel, Quad Listed
Features
- Stainless Steel flexible metal construction
- NPT male fitting (316SS) welded to each end
- Outer Braid (304SS) with inner flex hose of 321SS
- Inner liner of silicone coated fabric
- Certified QUAD listed
- Stainless steel wirebraid construction. Annular corrugated seamless hose. Cast in ribs for easy installation. Furnished with two zinc plated steel nipples.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Silver
- Hub Size
- 1"
- Type
- Flexible Coupling
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FLEX COUPLING 1" X 15" SS QUAD LISTED
- Harmonization Code
- 8307103000
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936073521
- NAICS Code
- 3359323108
Width2.190 in
ApplicationFor use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
FinishNatural
Special FeaturesStainless steel wirebraid construction. Annular corrugated seamless hose. Cast in ribs for easy installation. Furnished with two zinc plated steel nipples.
Finish TypeNatural
Class CodeD30
Freight Class Code05114009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging6.82
SeriesEKJ Series
BOX SIZE(in)
Master Pack DescriptionEach
