Tripp Lite

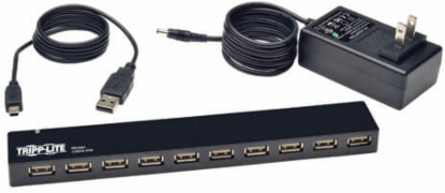

Tripp Lite U223-010 10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output

10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output
  • MPN: U223-010
  • UPC: 037332185396
  • PPN: TRP-U223-010

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$73.33/ EA

Description

10-Port USB 2.0 Hub, 480Mbps Data Rate, 5V 4A Output

Features

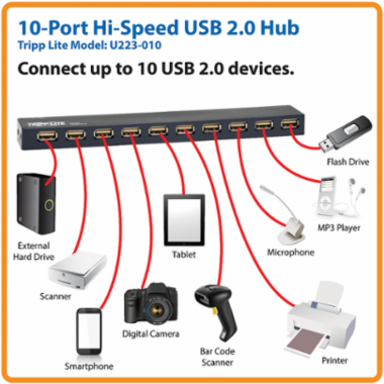

  • Connects up to 10 USB 2.0 devices
  • Bus powered or optional AC adapter
  • Compatible with all major operating systems
  • 3-year limited warranty

Specifications

Features & Specifications

USB Specification
USB 2.0 (up to 480 Mbps)
Technology
USB 2.0 (High Speed); USB
Driver RequiredNo

Certifications

Certifications
Tested to CE, FCC, RoHS, REACH

Connections

Ports
10
Side B - Connector 1
(10) USB A (FEMALE)
Side A - Connector 1USB A (FEMALE)
Connector PlatingNickel

Physical

Color
Black
Shipping Dimensions (hwd / in.)
2.20 x 3.20 x 9.10
Unit Dimensions (hwd / in.)
0.6 x 8.6 x 1.3
Unit Weight (lbs.)
0.2
Material of ConstructionABS
Shipping Weight (lbs.)0.70
Unit Packaging TypeBox

User Interface, Alerts & Controls

LED Indicators
Blue (Power)

Input

Voltage Compatibility (VAC)
100; 110; 120; 127; 200; 208; 220; 230; 240
External Power Supply Output Specs (V / A)
5V / 4A

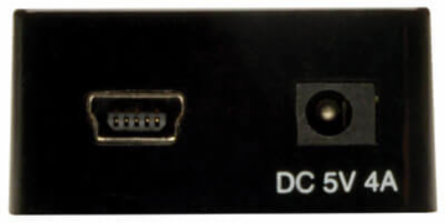

External Power Supply DC Barrel Connector Specs
OD: 3.5 x 1.35 x 8mm, Positive Pin, Negative Sleeve
External Power Supply Certifications
DOE; FCC; UL
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.9A
External Power Supply Cord Length (ft.)4
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo

Environmental

Operating Temperature Range
32 to 158 F (0 to 70 C)
Relative Humidity
10% to 90 % RH, Non-Condensing
Power Consumption (Watts)
0.55
Storage Temperature Range14 to 194 F (-10 to 90 C)
BTUs1.9 BTU/Hr
Power Provided to Connected Device(s)5V 0.5A (2.5W) Output per USB port

Overview

UPC Code
037332185396

Warranty

Product Warranty Period (Worldwide)
3-year limited warranty

Downloads
