Pass & Seymour

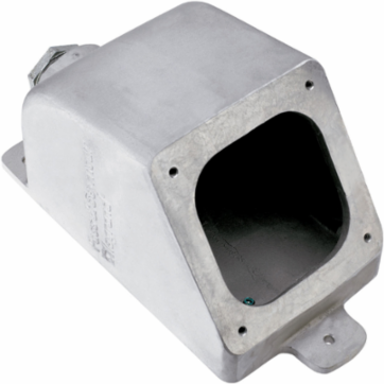

Pass & Seymour PSBB1001W Pin & Sleeve Watertight 100A Metal Back Box

Pin & Sleeve Watertight 100A Metal Back Box
  • MPN: PSBB1001W
  • UPC: 785007232288
  • PPN: P-S-PSBB1001W

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$436.03/ EA

Description

Metallic Back Box with 1 1/2-inch Hub Cast for New Style, 100A.

Features

  • Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
  • Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
  • Nylon construction for highimpact and corrosion resistance.
  • Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
  • Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
  • Natural-rubber grommets provide watertight protection at cable entry.
  • Combination-head screws for added convenience and quick installation.
  • Revolutionary, hinged cord grip for durable performance and ease of installation.
  • Cover with integral neoprene gasket provides watertight seal.

Specifications

Specifications

Depth
6.25 in
Height
12.5 in
Product Line
Pass & Seymour
Country of Origin
United States
Amperage
100.0 A
Wire Size
18 - 0 AWG
Application Sector
Industrial
ColorGray
Width6.25 in
StandardUL 498
Voltage347.0 V
Number of Wires4.0
Number of Poles3-Way
Special FeaturesCorrosion resistant turnlock locking device
