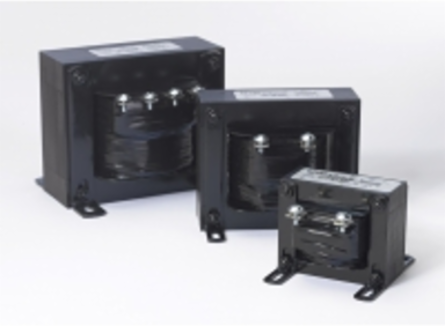

Marcus Transformer MO100D 100VA, 208/416 - 120/240, 50/60HZ, 1PH, OPEN TYPE
- MPN: MO100D
- UPC: 755658300032
- PPN: MTC-MO100D
CAD
$64.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
100VA, 208/416 - 120/240, 50/60HZ, 1PH, OPEN TYPE
Documentation & Downloads
Specifications
Additional
- VA
- 100 VA
- Secondary Voltage
- 120 / 240 V
- Phase
- Single Phase
- Output Amperage
- 0.83 A, 0.42 A
- Insulation Class
- B (130°C)
- Noise Level
- Less than 40 dB
- Dimensions B
- 2.50 in (63.5 mm)
- Dimensions D
- 2.50 in (63.5 mm)
- Mounting Holes
- 0.21 x 0.625 in (5.3 x 15.9 mm)
- Material
- Copper
Primary Voltage208 / 416 V
Frequency50 / 60 Hz
Input Amperage0.48 A, 0.24 A
Temperature Rise80°C
PolarityAdditive
Dimensions A3.00 in (76.2 mm)
Dimensions C3.27 in (83.1 mm)
Dimensions E2.50 in (63.5 mm)
Weight2.75 lbs (1.3 kg)
ComplianceCE Compliant, UL Listed, CSA Approved
