Documentation & Downloads
Tripp Lite P785DPKIT10 DisplayPort KVM Cable Kit, 4K DP, USB 3.2, 3.5 mm Audio, 10 ft
- MPN: P785DPKIT10
- UPC: 037332257031
- PPN: TRP-P785-DPKIT10
CAD
$53.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

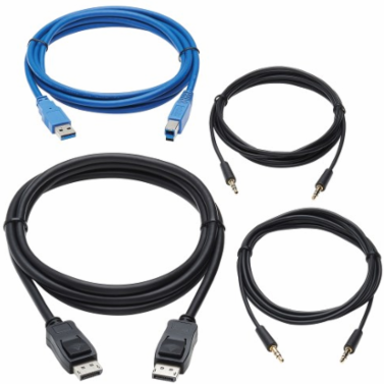

DisplayPort KVM Cable Kit for B005-DPUA2-K and B005-DPUA4 KVM, 4K DP, USB 3.2, 3.5 mm, 10 ft. (3.1 m)
Features

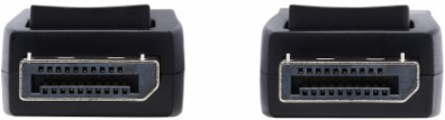

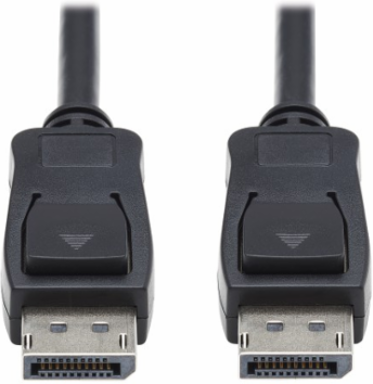

- P580-010 DisplayPort cable (M/M), 10 ft

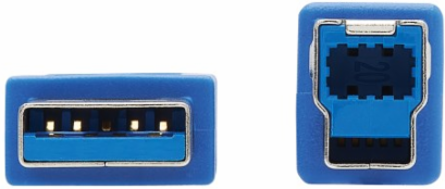

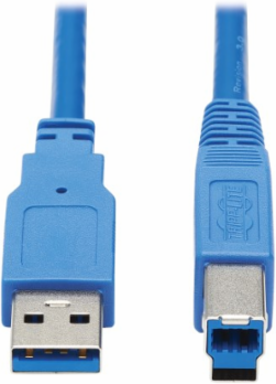

- U322-010 USB-A to USB-B cable (M/M), 10 ft

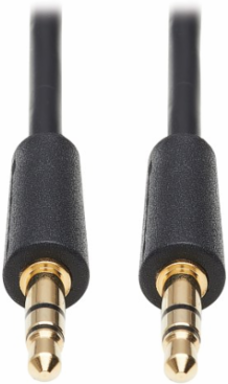

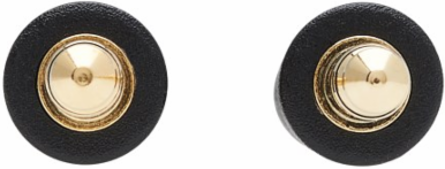

- (2) P312-010 3.5 mm audio cables (M/M), 10 ft
Documentation & Downloads
Specifications
Performance
- Max Supported Video Resolution
- 4096 x 2160 @ 60 Hz
- HDR Support
- No
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- HDCP Specification
- 2.2
- Storage Temperature Range
- 5° to 140°F (-15° to 60°C)
- Storage Humidity Range
- 0 to 90% RH, Non-Condensing
Max Supported Color Depth24-bit True Color
Chroma Sub Sampling4:4:4
Displayport Specification1.2
Operating Temperature Range14° to 122°F (-10° to 50°C)
Operating Humidity Range0 to 90% RH, Non-Condensing
Dimensions
- Technology
- DisplayPort; Stereo Audio
- Side A - Connector 2
- USB 3.0 A (Male)
- Side B - Connector 1
- DisplayPort (Male)
- Side B - Connector 3
- (2) 3.5mm (Male)
- Cable Outer Diameter
- USB: 5.0mm; Audio: 3.0mm; DisplayPort: 7.3mm
Side A - Connector 1DisplayPort (Male)
Side A - Connector 3(2) 3.5mm (Male)
Side B - Connector 2USB 3.0 B (Male)
Cable Length10 ft
Wire GaugeUSB: 30/24; Audio: 28; DisplayPort: 28
Reference
- Audio Specification
- Stereo Audio
Product Warranty PeriodLifetime limited warranty
Material
- Material of Construction
- PVC
- Cable Jacket Rating
- VW-1
ColorBlack; Blue
