Tripp Lite PS361220 12-Outlet (10-15A & 2-20A) Vertical Power Strip, 120V, 20A, 15-ft. Cord, 5-20P, 36 in.
Tripp Lite PS361220 12-Outlet (10-15A & 2-20A) Vertical Power Strip, 120V, 20A, 15-ft. Cord, 5-20P, 36 in.
- MPN: PS361220
- UPC: 037332186638
- PPN: TRP-PS361220
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$186.08/ EA
Description
Add extra power outlets in rack-mount, workbench, office, retail displays and telecom applications, or any area that needs to power many electrical devices in close proximity to one another from a single AC wall outlet.
Features

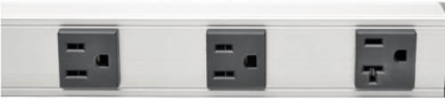

- 12-outlet (ten 5-15R & two 5-20R) power strip with a 15-ft. Cord and an industrial-grade 5-20P plug
- Rated at 1800W, 120V, featuring a 20A resettable circuit breaker to prevent circuit overloads
- Easy-to-install, vertical or horizontal mounting with included mounting clips
- Rocker-style, illuminated power switch with safety cover to prevent accidental turn offs
- RoHS-compliant and certified to meet UL 1363 standards
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Certifications
- UL1363 (Power Tap)
- UL1363
CanadacUL
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black

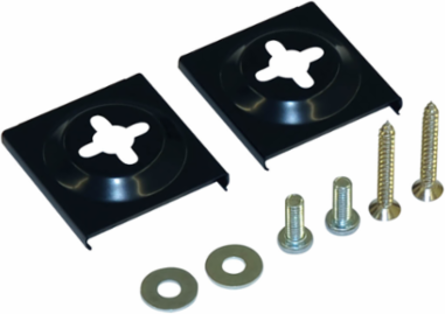

- Included Mounting Accessories
- Includes mounting clips
- Material of Construction
- Aluminum
- Receptacle Color
- Black
- Shipping Weight (lbs.)
- 4.50
- Unit Weight (lbs.)
- 3.79
ColorSilver
Form Factors SupportedSupports vertical or horizontal mounting in rack enclosures, raceways and a variety of other applications
Integrated Keyhole Mounting SlotsNo
Outlets Measurement (Center to Center)2.64"
Shipping Dimensions (hwd / in.)2.40 x 4.40 x 40.00
Unit Dimensions (hwd / in.)36 x 1.5 x 1.25
User Interface, Alerts & Controls
- Switches
- Lighted 2 position switch controls power to all outlets
Locking Switch CoverTransparent on/off switch cover prevents accidental turn-off
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 12 gauge; SJT

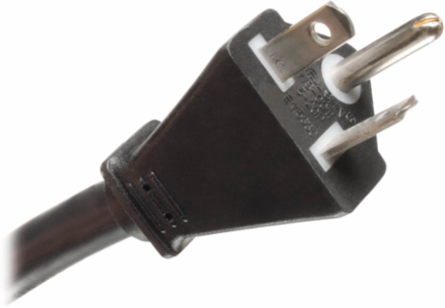

- Input Plug Type
- NEMA 5-20P
- Integrated Cord Clip
- No
Recommended Electrical Service20A 120V
Voltage Compatibility (VAC)120
Input Cord Length (ft.)15
Output
- Frequency Compatibility
- 60 Hz
- Output Receptacles
- (10) 5-15R; (2) 5-20R
- Transformer Accommodation
- (6) Yes
- Right-Angle Outlets
- No
Output (Watts)1800
Circuit Breaker (amps)20
Outlet Spacing2.64 in.
Overview
- UPC Code
- 037332186638
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Downloads
