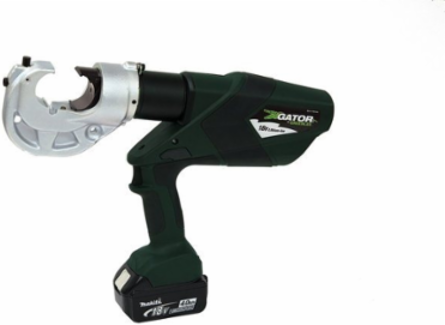

12 Ton Die Style Crimper, 30 mm Opening Size, Pistol Grip, 750 Kcmil Capacity
Greenlee

Greenlee EK1230LX120 12 Ton Die Style Crimper, 30 mm Opening Size, Pistol Grip, 750 Kcmil Capacity

  • MPN: EK1230LX120
  • UPC: 783310609988
  • PPN: GRN-EK1230LX120
  • UNSPSC: 27111518
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

12 Ton Die Style Crimper, 30 mm Opening Size, Pistol Grip, 750 Kcmil Capacity

Features

  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
DE
Handle Type
Pistol Style with over molded rubber grip
Type
Die style crimper
Wire Size
8 AWG - 750 Kcmil Cu & Al
Overall Length
15.5 IN (394 mm)
Crimping Capacity
750 Kcmil (MCM) Cu & Al
ApplicationDie style crimper
Sub BrandGator
StandardC/US UL Listed
Opening Size1.2 IN (30 mm)
Crimping Force24,000 lbs. (106 kN)
Connector TypeColor-coded lugs and splices
