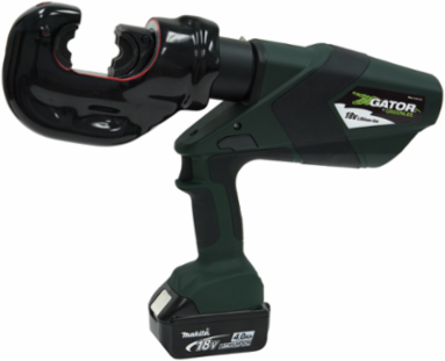

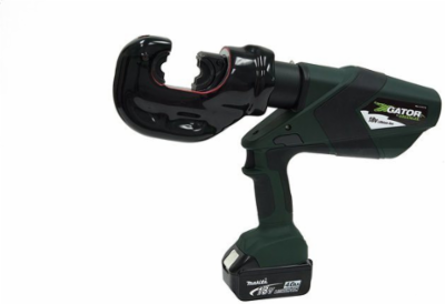

Greenlee EK1240CLX11 Gator 12 Ton Crimper, 1.65 Inch Opening Size, 750 Kcmil Capacity, Lithium Ion
- MPN: EK1240CLX11
- UPC: 783310610342
- PPN: GRN-EK1240CLX11
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Gator 12 Ton Crimper, 1.65 Inch Opening Size, 750 Kcmil Capacity, Lithium Ion
Features
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
- LED light provides the operator with the battery charge and tool maintenance status
- Two-stage hydraulic system provides fast advance and power speeds, saving time
- Forward handle position improves tool balance
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Sub Brand
- Gator
- Standard
- C/US UL Listed
- Opening Size
- 1.65 IN (42 mm)
- Crimping Force
- 24,000 lbs. (106 kN)
- Connector Type
- Color-coded lugs and splices
Handle TypePistol Style with over molded rubber grip
TypeDie style crimper
Wire Size8 AWG - 750 Kcmil Cu & Al
Overall Length16.25 IN (413 mm)
Crimping Capacity750 Kcmil (MCM) Cu & Al
