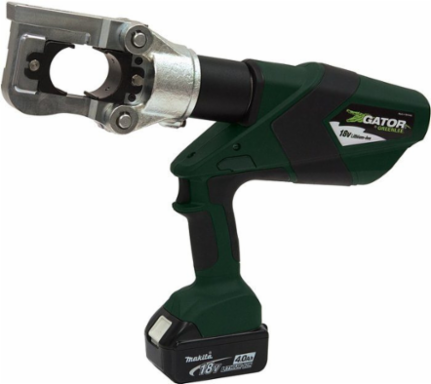

12 Ton Lithium Ion Crimping Tool, 750 Kcmil Capacity, Pistol Grip, 16.5 Inch
Greenlee

Greenlee E12CCXLX11 12 Ton Lithium Ion Crimping Tool, 750 Kcmil Capacity, Pistol Grip, 16.5 Inch

  • MPN: E12CCXLX11
  • UPC: 783310611462
  • PPN: GRN-E12CCXLX11
  • UNSPSC: 27111518
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

12 Ton Lithium Ion Crimping Tool, 750 Kcmil Capacity, Pistol Grip, 16.5 Inch

Features

  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Crimping tool features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback to lineman.
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18 V Lithium Ion (Li-Ion) battery provides 70% more cycles per charge and faster cycle times
  • Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Germany
Sub Brand
Gator
Standard
C/US UL Listed
Overall Length
16.5 IN (420mm)
Crimping Capacity
750 Kcmil (MCM) Cu & Al
Handle TypePistol Style with over molded rubber grip
TypeDie style crimper/cutter
Wire Size8 AWG - 750 Kcmil Cu & Al
Crimping Force24,000 lbs. (106 kN)
Connector TypeColor-coded lugs and splices
