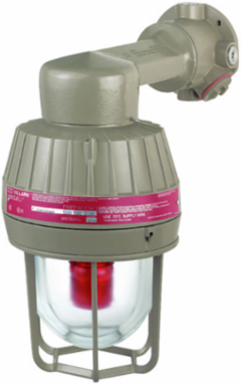

Killark ESXB120AB2G 120V Xenon Blue Strobe Light, 3/4 Inch Wall Mount, Flash Rate 85 FPM
Killark ESXB120AB2G 120V Xenon Blue Strobe Light, 3/4 Inch Wall Mount, Flash Rate 85 FPM
- MPN: ESXB120AB2G
- UPC: 783936028576
- PPN: HBL-ESXB120AB2G
- UNSPSC: 39111706
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
120V 50/60HZ Blue Strobe, 3/4" Wall Mount
Features
- Electronic component temperature range –40?C to +55?C
- NEC temperature code, T6 (<85°C)
- Flash rate–85 flashes per minute
- Xenon type lamp
- Voltage and amperage: 12-74 VDC: Draws 1.25A avg. @ 12 VDC tapering to 0.2A avg. @ 74 VDC, .75A avg. @ 24 VDC
- 120 VAC (50/60 HZ): Draws 0.30A avg.
- 240 VAC (50/60 HZ): Draws 0.17A avg.
- Power supply output: 13 watts standard 11 watts for 12-74 VDC
- The ESX Series Explosion Proof Xenon Strobe is designed for warning and signaling applications. This fixture is made with a cast copper-free aluminum housing and are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Specifications
Specifications
- Country of Origin
- United States
- Hub Size
- 3/4"
- Mounting
- Wall Bracket
- Voltage Rating
- 120 VAC
- Frequency Rating
- 50/60 Hz
- Mounting Type
- Wall Bracket
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D201
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936028576
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Optic TypeGlass Globe - Blue
Special FeaturesThe ESX Series Explosion Proof Xenon Strobe is designed for warning and signaling applications. This fixture is made with a cast copper-free aluminum housing and are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Finish TypePowder Epoxy Paint
Lamp TypeFlashing
ARRA CompliantContact Manufacturer
Description - Invoice12V 50 60HZ WALL 3/4 BLU STRBE
Harmonization Code8531809051
MSDS FlagNo
Light SourceXenon
SeriesESX Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Total Units1 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
