Mersen V301824 High-Speed 1250/1300 Volt Semiconductor Fuse, 50-1800 A, Ceramic Body
Mersen V301824 High-Speed 1250/1300 Volt Semiconductor Fuse, 50-1800 A, Ceramic Body
- MPN: V301824
- UPC: 782001255329
- PPN: FER-V301824
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1029.96/ EA
Description

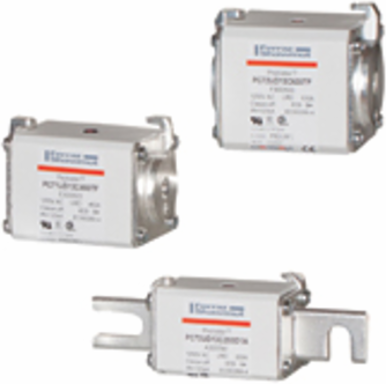

Mersen 1250/1300V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in four different body sizes, each size having seven worldwide acceptable mounting styles. The different mounting styles and body sizes long with a broad range of ampere ratings allow greatest flexibility in equipment design. Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR's, diodes, thyristors, GTO's and IGBT devices. They have pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for low I2t and high interrupting rating. All contact surfaces are silver-plated and all hardware is non-magnetic. All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly onto the fuse even while in service.
Features
- Broad range of ampere ratings in a given body size for design flexibility
- Superior Cycling Ability
- Choice of mounting styles gives wide choice for equipment design
- Extremely Fast-Acting
- Worldwide Acceptability
- Very Low I²t
- IEC 269-4 compliance for worldwide semiconductor applications
- Current-Limiting
Specifications
Product Details
- ROHS Compliant
- Consult Technical Services
- Body Style
- Square
- Lead Free
- Consult Technical Services
- CSA Certification
- 1422-30 012636_0_000
- Body Material
- Ceramic
- Connection Terminal Type
- Blade Flat-Type
- Speed / Characteristic
- High-Speed
- CE conformity
- Consult Technical Services
MountingBolted
Ampere Range50 to 1800 A
StandardsUL Recognized Component Sizes 70, 71, 72, 73 Tested to IEC 269.4 RoHS Compliant
UL CertificationE76491 JFHR2.E76491E76491 JFHR2.E76491
I.R. AC100 kA
AC Voltage Range550 - 1300 VAC
ApplicationsProtection of rectifiers, inverters, DC drives, UPS Systems, reduced voltage motor starters, and other equipment.
