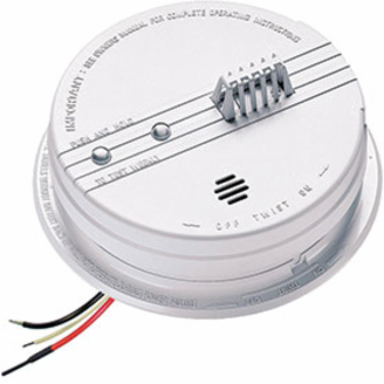

Kidde HD135F 135°F Heat Alarm, 120VAC, 5” Diameter, Interconnects 24 Devices
- MPN: HD135F
- PPN: KID-HD135F
CAD
$21.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Kidde HD135F is a 120VAC Wire In Heat Alarm that responds to temperature rather than smoke. The alarm will sound if temperatures rise above 135˚F. The Kidde HD135F is interconnectable. The interconnect system must not exceed the NFPA (National Fire Protection Association) limit of 18 initiating devices (Smoke, heat, CO, etc) interconnected, it is still possible to interconnect 6 strobe lights and or relay modules. This unit includes a 5-year limited warranty and is UL Listed.
Features
- The Kidde HD135F 120V AC wire in heat alarm gives you and your family an early warning to dangerous temperatures of 135˚F or more
- This unit also includes a tamper resist pin that helps to deter thief and tampering.
- This unit can be used as a single station unit or it can be interconnected to up to 24 Kidde devices in a multiple station arrangement
- Interconnectable – Interconnects with up to 24 Kidde devices of which 18 can be initiating.
- Test Button – Tests unit’s electronic circuitry, horn and battery function.
- 9V Battery Back Up – Provides continuous protection even during power outages.
- Red LED – Flashes every 30-40 seconds to indicate proper operation.
- Low Battery Indicator – Alerts user in the event of alow or missing battery.
- Quick Connect Power Harness – Makes installation fast and easy.
Documentation & Downloads
Specifications
Key Specifications
- Model
- HD135F
- Power Source
- 120VAC, 60HZ, 9V battery backup
- Audio Alarm
- 85dB at 10ft
- Humidity Range
- 5%-95% relative humidity (RH)
- Weight
- .75lbs
- LED
- Green, AC power present, alarm mode; flashing Red indicates originating unit
UPC Number0-25417-84135-0
SensorHeat
Temperature Range-20F to +100F (-29C and +38C)
Size5” in diameter x 2” depth
InterconnectsUp to 24 Kidde devices of which 18 can be initiating devices.
Warranty5 year limited warranty
