Tripp Lite DRS-1215 14-Outlet Economy Network Server Surge Protector, 1U Rack-Mount, 15-ft. Cord, 3000 Joules
Tripp Lite DRS-1215 14-Outlet Economy Network Server Surge Protector, 1U Rack-Mount, 15-ft. Cord, 3000 Joules
- MPN: DRS-1215
- UPC: 037332100245
- PPN: TRP-DRS-1215
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$217.90/ EA
Description
14-Outlet Economy Network Server Surge Protector, 1U Rack-Mount, 15-ft. Cord, 3000 Joules
Features
- 14 outlets / 15-ft. cord
- 3000 joule rating
- Adjustable rackmount hardware
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 3000
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- Safe Thermal Fusing
- Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
- EMI / RFI Filtering
- 40-80 dB
- Automatic Shut-Off
- No
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)140
UL1449 Let Through Rating330V
ImmunityConforms to IEE 587 / ANSI C62.41
Certifications
- UL1449 3rd Edition (AC Suppression)
- Tested to UL1449 3rd Edition by ETL
- Approvals
- Exceeds IEEE 587 category A&B specifications
CanadaApproved for Canada by ETL
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black
- Housing Color
- Black
- Integrated Keyhole Mounting Slots
- Yes (Includes flanges)
- Outlets Measurement (Center to Center)
- Distance between front outlets = 38.9mm; Distance between rear outlets = 38.9mm
- Shipping Dimensions (hwd / in.)
- 9.30 x 2.50 x 20.40
- Unit Dimensions (hwd / in.)
- 1.75 x 17.5 x 4
ColorBlack
Form Factors Supported1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options
Included Mounting AccessoriesIncluded mounting flanges are pre-installed for 1U rackmount installation and can be re-configured to support a variety of mounting options
Material of ConstructionMetal
Receptacle ColorBlack
Shipping Weight (lbs.)5.86
Unit Weight (lbs.)4.6
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- Diagnostic LED Details
- Green - Protection Present
SwitchesPower switch controls power to all outlets
Locking Switch CoverTransparent locking switch cover prevents accidental shutoff
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Voltage Compatibility (VAC)
- 120

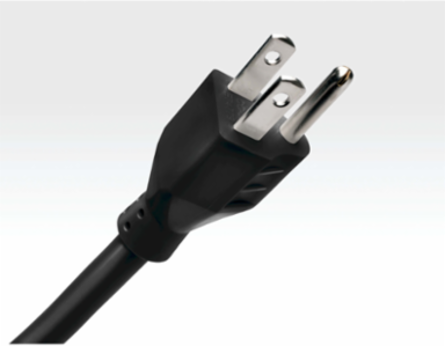

- Input Plug Type
- NEMA 5-15P
- Right-Angle Plug
- No
Recommended Electrical Service120V (110-125V)
Maximum Surge Amps120000
Input Cord Length (ft.)15
Integrated Cord ClipNo
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (14) 5-15R
Output (Watts)1800
Circuit Breaker (amps)15
Overview
- UPC Code
- 037332100245
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
