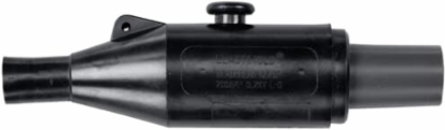

Thomas & Betts K151SP-GAB10AX 15/25KV 200A DB STRT PLUG GAB10AX

MPN: K151SP-GAB10AX
UPC: 783786630912
PPN: T-B-K151SP-GAB10AX
UNSPSC: 39121421

$317.33

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Straight Plug, 200 Amp, DeadBreak, 15/25KV, Cable Insulation Diameter 0.825 inch to 0.935 inch.

Specifications

Additional Information

Application	Designed to Terminate UD Cable having Concentric Neutral and Extruded instalation shielding.
Color	Black
Effective Date	19980115
Insulation Material	Yes, EPDM Rubber
Product Name	PRIMARY CABLE ACC. 200 SEP CON
Size	2.55 inch wide x 8.81 inches long
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV

Brand / Label	Elastimold
Current Rating	200 A
Includes	Straight Receptacle Housing, Receptacle Pin Connector, Tube Lubricant, Installation Instruction and Crimp Chart
Material	Housing - EPDM Rubber
Product Type	Deadbreak Straight Plug
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for ground wire connection. Wide cable range with minimum number of sizes. No Test Point.
Temperature Range	-40 to +65 °C
