Thomas & Betts 655CK-K0320-ARR-S Cable Adapter, Lug and Adapter Retaining Ring
- MPN: 655CK-K0320-ARR-S
- UPC: 783786427130
- PPN: T-B-655CK-K0320-ARR-S
CAD
$235.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

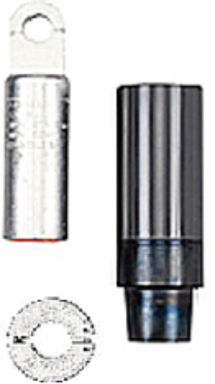

15/25kV, 600 Amp, Deadbreak, Cable Adapter, Lug and Adapter Retaining Ring. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. 200ECS Cold-Shrinkable Jacket Seal Included.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | Sealing Ring |
| Standard | ANSI/IEEE 386 |
| Material | EPDM Cable Adapter |
| Connection | Crimp/Compression |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | Cable Adapter, Lug and Adapter Retaining Ring |
| Application | Deadbreak, 600 Amp, 15/25kV |
| Size | Conductor kcmil Compressed/Stranded 450 or Compact/Solid 500/550. |
| Temperature Rating | -20 Degrees Celsius to +65 Degrees Celsius |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1.75 lbs. Each |
| Outer Dimensions (inches) | 12.56x8.5x3.62 |
|---|
