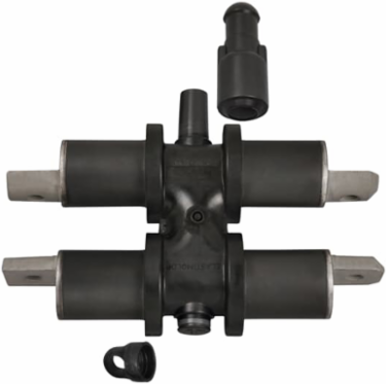

Thomas & Betts K656CHSL-L0320-SG1 15-25KV 600A CH CONN SPIKING AID
- MPN: K656CHSL-L0320-SG1
- UPC: 075114304955
- PPN: T-B-K656CHSL-L0320-SG1
- UNSPSC: 39121421
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp, Separable H Joint (4-Way) with Test Point, Spiking Aid, Cable Insulation 1.180-1.465 inches, Aluminum Compression Lug, Conductor Size 450 Stranded/Compressed, Cold Shrinkable Seal with Copper Rod and Crimp Connector
Specifications
Additional Information
| Application | Used to Join Cables in a Disconnectable 4-Way Joint, Suitable for Small Vaults and Manholes Due to its Compact Size |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Environmental Conditions | Fully Submersible |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | STEEL PREFAB ASSEMBLY |
| Special Functions | Includes Integral Capacitive Test Point, Cold Shrinkable Seal with Copper Rod and Crimp Connector |
| Voltage Rating | 15 to 28 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20160518 |
| Includes | 4-Way Bus Bar, Lubricant, Installation Instructions, Straight Receptacle, Bolts and Washers, Cable Adapter, Retaining Ring and Lug |
| Material | Housing - EPDM Rubber |
| Product Type | Deadbreak Compact H Joint with Spiking Aid and Seal, Cable Adapter, Retaining Ring and Lug |
| Standards | ANSI/IEEE Standard 386 |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
