Thomas & Betts K655LR-F0210 15/25KV 600A DB ELBOW ASSY F0210
- MPN: K655LR-F0210
- UPC: 783786022052
- PPN: T-B-K655LR-F0210
- UNSPSC: 39121421
CAD
$854.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

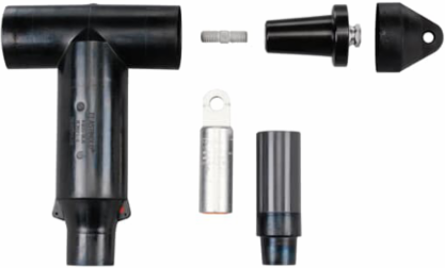

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.640 inch to 0.820 inch. Conductor Size AWG Compacted Solid #2.
Specifications
Additional
| Voltage | 15 to 25 kV |
|---|---|
| Temperature Range | -40 to +65 C |
| Connection Type | Compression |
| Environmental Conditions | Fully Submersible |
| Color | Black |
| Amperage | 600 A |
|---|---|
| Size | Width 10.36 in, Length 13.00 in from body of T-Body to center of bushing |
| Material | Housing - EPDM Rubber, Aluminum |
| Standards | ANSI/IEEE Standard 386 |
| Country of Origin | United States (US) |
