Thomas & Betts K655LR-LAC02 15/25KV 600A DB ELBOW ASSY LAC02
- MPN: K655LR-LAC02
- UPC: 075114396851
- PPN: T-B-K655LR-LAC02
- UNSPSC: 39121421
CAD
$896.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

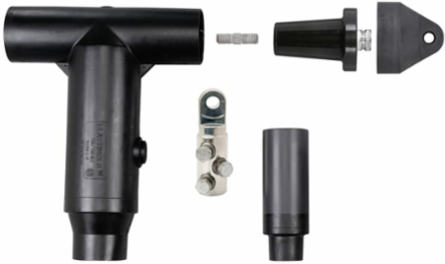

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug with Cap, Stud, Shear Bolt Lug, Cable Adapter and lubricant. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size 3/0 AWG Stranded or Compressed or Solid or Compact to 500 kcmil Stranded or Compressed or Solid or Compact.
Specifications
Additional
| Voltage | 15 to 25 kV |
|---|---|
| Size | Width 10.36 in, Length 13.00 in from Body of T-Body to Center of Bushing |
| Environmental Conditions | Fully Submersible |
| Connection Type | Shear Bolt |
| Country of Origin | United States (US) |
| Amperage | 600 A |
|---|---|
| Material | Housing - EPDM Rubber, Insulation - EPDM Rubber |
| Standards | ANSI/IEEE Standard 386 |
| Color | Black |
| Product Series | 600 Series |
