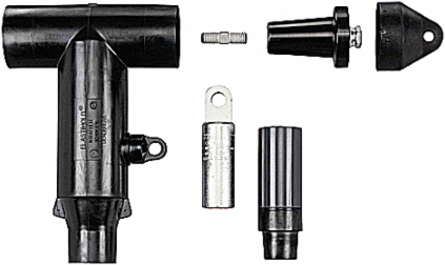

Thomas & Betts K656LR-J0300-SG3 Deadbreak Elbow Connector with Test Point

MPN: K656LR-J0300-SG3
UPC: 075114354929
PPN: T-B-K656LR-J0300-SG3

$1202.53

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kV, 600 Amp Deadbreak Elbow with Test Point and with SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Cable Insulation Diameter J - 0.980 to 1.180 inch. Aluminum Compression Lug, Conductor Size 300 - 350 kcmil Stranded/Compressed or 400 kcmil Solid/Compact.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Per0xide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point. Cold-Shrinlable Seal with Copper Braid and Constant Force Spring
Standard	ANSI/IEEE Standard 386
Conductor Range	Stranded/Compressed 350 or Solid/Compact 400
Color	Black
Amperage Rating	600 Amps
Temperature Rating	-40 degrees to +65 degrees Celsius
Consist Of	Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.

IGCC	4586 Electrical connector assembly
Type	Deadbreak Elbow Connector with Test Point
Application	15/25kV, 600 Amp Deadbreak Elbow Connection
Size	Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Material	Housing - EPDM Rubber
Voltage Rating	25kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible
