Thomas & Betts K656LR-N-AC04 15/25KV 600A DB ELBOW TP N-AC04
- MPN: K656LR-N-AC04
- UPC: 075114354288
- PPN: T-B-K656LR-N-AC04
- UNSPSC: 39121421
CAD
$1086.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

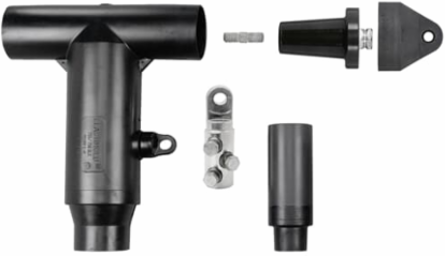

15/25kV, 600 Amp, Elbow Connector with Test Point - with Shear Bolt Connector. Includes Elbow Housing, Insulated Plug with Cap, Stud, Shearbolt Lug, Cable Adapter and Lubricant. Cable Insulation Diameter N - 1.550 to 1.780 inch. Tin-Plated Aluminum ShearBolt Lug, Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.
Specifications
Additional Information
- Application
- 15/25kV, 600 Amp Deadbreak Elbow Connection
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 25 kV
Brand / LabelElastimold
Connection TypeShear Bolt
Effective Date20171115
IncludesElbow Connector Housing, Shearbolt Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector with Test Point
Special FunctionsFully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
