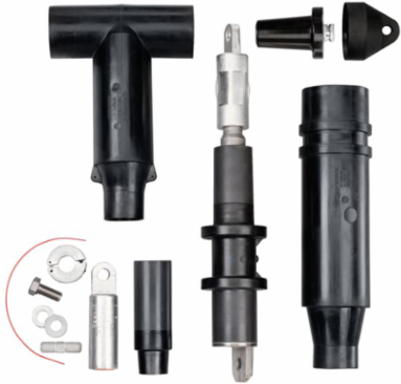

Thomas & Betts K655RLR-J2300 15/25KV 600A DB REPL ELBOW J2300

MPN: K655RLR-J2300
UPC: 783786805815
PPN: T-B-K655RLR-J2300
UNSPSC: 39121421

$3231.13

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow without Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.

Specifications

Ordering

Country of Origin	United States (US)

Selling Unit of Measure	each

Additional Information

Application	Used where Cable has been severed and is not long enough to reach the Elbow.
Color	Black
Current Rating	600 A
Environmental Conditions	All Weatheronditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Length 31.56 inches
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20090210
Includes	Elbow Connector Housing, Lubricant, Stud, Replacement Housing, Insulated Plug, Cable Adapter, Connector, Adapter Retaining Ring, Installation Instructions, Crimp Chart
Material	Housing - EPDM Rubber
Product Type	Deadbreak Replacement Elbow Connector
Special Functions	Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Rubber. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
Temperature Range	-40 to +65 °C
