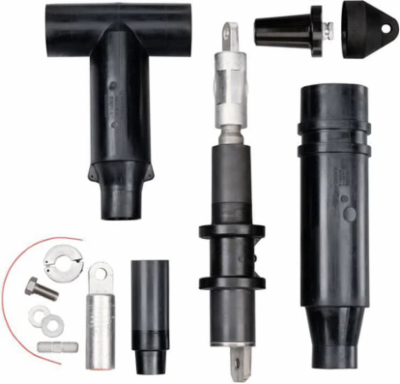

Thomas & Betts K656RLR-K0300 15/25KV 600A DB REPL ELBOW TP K0300
- MPN: K656RLR-K0300
- UPC: 783786486045
- PPN: T-B-K656RLR-K0300
- UNSPSC: 39121421
CAD
$3147.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.
Specifications
Additional
| Current Rating | 600 A |
|---|---|
| Size | Length 31.56 in. |
| Material | Housing - EPDM Rubber |
| Connection Type | Compression |
| Standards | ANSI/IEEE Standard 386 |
| Color | Black |
| Brand | Elastimold |
| Voltage Rating | 15 to 25 kV |
|---|---|
| Conductor Size | 350 AWG Compressed Stranded, 400 AWG Compacted Solid, 185 mm2 Compact |
| Insulation Material | EPDM Rubber |
| Temperature Range | -40 to +65 C |
| Environmental Conditions | All Weather Conditions |
| Country of Origin | United States (US) |
