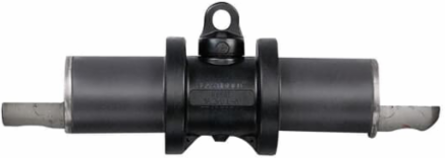

Thomas & Betts K656I-BUS 15/25KV 600A DB STR JOINT TP BUS
Thomas & Betts K656I-BUS 15/25KV 600A DB STR JOINT TP BUS
- MPN: K656I-BUS
- UPC: 783786642687
- PPN: T-B-K656I-BUS
- UNSPSC: 26121630
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1251.77/ EA
Description
15-25kV 600 Series Deadbreak 2-Way Insulated Bus Bar with Test Point.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Additional Information
- Application
- Used to joint cables in a disconnectable 2-way joint. It is suitable for small vaults and manholes due to it size compact. K656I is modular and ideal where separableComponents are required to accommodate future system circuit changes or expansions. It can also be used initially as 2-way joint with insulated caps on the un-used interface. The K656I can also be used in direct -buried applications.
- Effective Date
- 19980115
- Product Name
- electrical connector,>1000v"
- Size
- 3.77 inch (95.7 mm) Diameter, 9.75 inch (247.7 mm) Length of Body
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
MaterialEPDM Rubber
Product Type2-Way Insulated Bus Bar
Special Functions15kV, 600A Deadbreak rated separable connector. Compact design is suitable for small vaults and man holes. Fully shielded, fully submersible, 100 percent peroxide cured EPDM molded rubber. Reusable components reduce inventory and other costs. Includes integral capacitive test point.
Ordering
- Selling Unit of Measure
- each
