Thomas & Betts K655YSR-F2220 15/25KV 600A DB STR RECEPT F2220
- MPN: K655YSR-F2220
- UPC: 783786324361
- PPN: T-B-K655YSR-F2220
- UNSPSC: 39121421
CAD
$1374.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

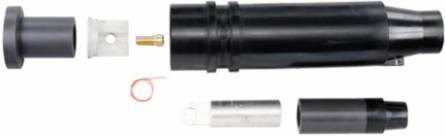

15/25kV, 600 Amps, Deadbreak Straight Receptacle without Test Point. Contains Cable Adapter, Lug and Retaining Ring. Cable Insulation Diameter F - 0.640-0.820 inch. Copper Compression Lug. Conductor Size 220 - Stranded/Compressed #2, Solid/Compact #1.
Specifications
Additional Information
- Application
- These Connectors allow a straight cable connection on Switchgear or Electrical Apparatus equipped with 600 Amp Bushings.
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- RECEPTACLE 600A DB 15/25KV > 1000V
- Size
- Length 16.98 inch x 4.19 inch Diameter
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20020405
Includes1 Sraight Receptacle Housing, 1 Cable Adapter, 1 Compression Lug, 1 Adapter Ring, Bolts and Washers, Crimp Chart, Installation Instructions
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Straight Receptacle
Special FunctionsFully Shielded, Fully Submersible, Can be easily Connected or Disconnected in a De-Energized State.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
