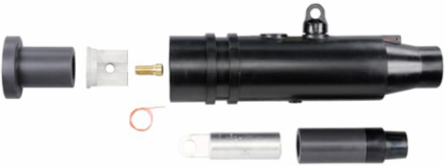

Thomas & Betts K656SR-N0410 15/25KV 600A DB TP STR RECEP N0410
- MPN: K656SR-N0410
- UPC: 075114406482
- PPN: T-B-K656SR-N0410
- UNSPSC: 39121421
CAD
$1447.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, 600 Series Straight Receptacle with cable adapter, lug and retaining ring. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 1000.
Specifications
Additional Information
- Application
- 15/25kV, 600 Amps
- Color
- Black
- Current Rating
- 600 A
- Includes
- 1 Straight Receptacle Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Straight Receptacle adapter, 1 Cable adapter, 1 Adapter Retaining Ring, 1 Hardware Prepack, Crimp Chart, Installation Instruction Sheets
- Material
- Housing - EPDM Rubber
- Product Name
- ELECTRICAL PLUG>1000V
- Size
- Diameter 4.19 inch x Length 16.98 inch
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20200114
Insulation MaterialYes, EPDM Rubber
Product Main TypeELASTIMOLD 600A SEPARABLE CONNECTORS
Product TypeDeadbreak Straight Receptacle with Test Point
Special FunctionsFully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
