Thomas & Betts K656CYP0410P0410P041 Deadbreak Separable Wye Joint

MPN: K656CYP0410P0410P041
UPC: 783786656783
PPN: T-B-K656CYP0410P0410P041

$4090.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, with 3 X ( Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. )

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber.
Standard	ANSI/IEEE Standard 386
Connection	Compression - Crimp
Material	Housing - EPDM Rubber
Voltage Rating	15/25kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	All Weather Conditions

IGCC	4586 Electrical connector assembly
Type	Deadbreak Separable Wye Joint
Application	Compact Design is suitable for small vaults and manholes.
Size	Overall Length 37.27 inches x Width 8.12 inches not counting 1 inch Test Point
Conductor Range	Compressed/Stranded 1000
Color	Black
Amperage Rating	600 Amps
Temperature Rating	-40 degrees to +65 degrees Celsius

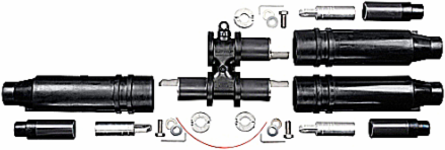

Consist Of	(1) 3-Way Bus Bar, (3) Straight Receptacles, (3) SR Size Kits, (2) Lubes of Lubricant and Installation Instructions
