Thomas & Betts K656YSR-K0330 15/25KV 600A DB YSTR RECEP TP K0330
- MPN: K656YSR-K0330
- UPC: 075114316071
- PPN: T-B-K656YSR-K0330
- UNSPSC: 39121421
CAD
$1088.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

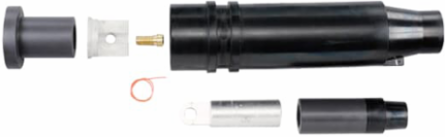

600 Amp, 15/25kV, Deadbreak, Straight Receptacle with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 500.
Specifications
Additional Information
| Application | 15/25kV, 600 Amps |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 to 25 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20160819 |
| Material | Housing - EPDM Rubber |
| Product Type | Deadbreak Straight Receptacle with Test Point |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
